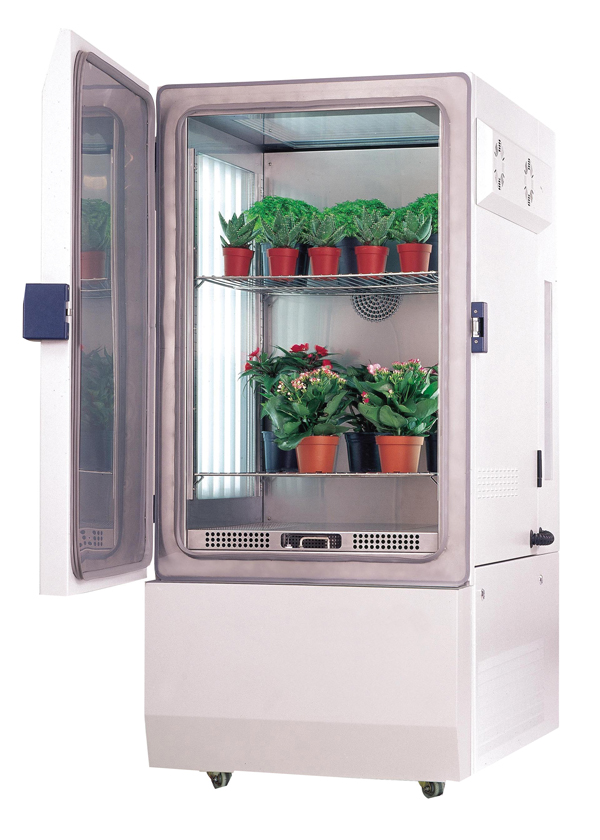

Plant Growth Chamber (LI-PGC-51)

We are manufacturers of plant growth chambers in India since decade. Our plant growth chamber rare conceptualized and designed to create test chambers to study and contemplate the effects of different environmental parameters such as humidity, temperature and light in various applications tests involving micro-organisms, plants, tissues, and animals etc apart from various customized industrial and research applications.

Our plant growth chambers have a variety of usage in R & D laboratories and research studies across the globe. Apart from that, these plant growth chamber have a variety of usages in tissue culture applications, enzyme reaction studies, growth observation studies, fermentation analysis and various other general and specialized applications in various laboratories.

We specialize in both standard and customized models, specifically designed to meet the challenging demands of various scientists for individual and specialized research applications. Over a short period of time Labard brand have been established as reliable manufacturer of plant growth chamber in India.

Apart from that we are supplying our plant growth chamber to a variety of customers ranging from Defense Installations, Research Laboratories, Ed

Labard plant growth chamber are double walled convection heated and cooled units Outer body of our plant growth chamber are constructed out of thick PCRC sheet duly pre-treated with primers and rust proofing and painted with long lasting stove enamel or elegantly powder coated. The inner chamber is made of heavy gauge stainless steel sheet of SS-304 grade or anodized aluminum sheet or G.I. (as per the customer’s requirements). The gap between the walls is filled high grade mineral glass wool, which ensures maximum thermal efficiency in our walk in incubators.

The unit is provided with two doors, the inner door is made of thick plexi glass/float glass, to view the specimens/culture media/stocks, without disturbing the temperature of the chamber. This door is provided with magnetic door closer. The outer door is made of mild steel sheet lined with stainless steel from inside. This door is provided with lock and key arrangement. The unit is mounted on a sturdy steel frame The unit is provided with various customized shelves in various permutations and combinations to suit individual requirements. The triple walled back of our plant growth chamber are provided with two/Four/Six/Eight (size specific) air circulation fans for uniform maintenance of the temperature throughout the chamber.

Indirect heating system is provided in our units, comprising of air heaters made of high grade Kanthal A-1 wires of suitable wattage.. The warm air is evenly distributed throughout the chamber through efficient motor fans ensuring a very good temperature sensitivity.

COOLING :

An energy efficient cooling unit is installed in our plant growth chamber to enable bio chemical demand, cyclic and growth studies at lower room temperatures. We use ISI marked high end CFC free compressors conforming to latest international standards and guidelines.



HUMIDITY :

Humidity generation provision is incorporated in our plant growth chamber. The humidity is generated by means of aerosol humidity generator with efficient humidity controller cum indicator.



Humidity Range :

From Ambient to 95% (As per the temperature Requirements)

Humidity Sensitivity :

Humidity is controlled by mean of an electronic humidity controller cum indicator with an accuracy of + 5%.



Our plant growth chamber are provided with door operated illumination system comprising of fluorescent lights, beside two panels of diffused fluorescent light panel located at the either side of the chamber to enable the user to conduct the photo periodic tests and experiments.

Illumination Control :

The illumination is controlled through solid state cyclic timer to control the photoperiodic cycle of the chamber.



Front panel of our units comprises of on/off switches heating, cooling and mains indicator lamps, temperature controllers and voltmeters.

Temperature Control	–	–
Temperature Sensitivity	± 0C	0.5 or better
Spatial Deviation in Temp.	± 0C	0.5 or better
Readability	0C	0.1
Temperature Range	0C	50C to 700C
Temperature Sensor	–	PT-100
Temperature Controller	–	Solid State Digital Controller/PID Optional
Display	–	LED/LCD
Adjustable alarms limits	–	Optional with PID Controller Only
Water Quality	–	Distilled/Ionized
Safety Thermostats	–
Temperature Variation Adjustment	–	3 (With PID Controllers Only)
Temperature Sensors	–	PT-100
Automatic Temp. Setting	–	Yes (With PID Controllers Only)
Adjustable limits	–	Yes (With PID Controllers Only)
Light Control	–
Readability or Set ability%		10% (Optional Feature)
Light Intensity (Middle Chamber)	LUX	As Desired (Optional Feature)
Light Intensity (Both Side)	LUX	As Desired (Optional Feature)
Standard Shelves	–	3/4/5/7/9/12
Internal Dimensions	mm	Model Specific
Maximum Permitted load per Shelve	kg	5-10 kg
Maximum permitted total load	kg	120 kg
Power Consumption
Nominal Power	W	950-2500
Nominal Voltage	V	220-230 Volts, 50 Hz
Frequency	Hz	Single Phase 50 / 60

	Size inside chamber (W × D × H )	Capacity in cu. ft.	Capacity
A	570 × 875 × 550 mm	10	280 liters
B	775 × 900 × 775 mm	20	560 liters
C	835 × 1200 × 825 mm	30	840 liters
D	900 × 1720 × 800 mm	45.8	1282 liters

1. Electronic digital indicator-cum-humidity controller and temp. controller.
2. Microprocessor PID digital temp. indicator-cum-controller.

• Automatic voltage stabilizer (Recommended).
